Engine: 92mm Intake manifold kit fits for LS Based Engines with Cathedral Port Heads Shape, 4.8L LR4/ 5.3L L33 L59 LM4 LM7/ 5.7L LS1 LS6/ 6.0L LQ4 LQ9 LS2.
Model: Intake manifold is compatible with Chevy Corvette 97-07, for Pontiac Firebird Formula, for Trans AM 98-02, for Corvette Z06 01-04, for Cadillac CTS V-series 04-05, for Chevy SSR 05-06, for Chevy TrailBlazer SS 06-09, for Cadillac CTS V-Series 06-07, for Pontiac GTO 05-06, for Saab 9-7X Aero 08-09.
High Strength: 3MM thickness T6061 Sheet Aluminum; TIG Welded; Stable and not bend; Improve performance and throttle response.
Intake Manifold Height: 8.26 inches (approx. 3 inches higher than stock)
Intake total length: 19.2 inches
Material Thickness: 3mm
Fuel Rail Fitting: 6AN to 8AN
Vacuum Port Fittings: 1/8 NPT to 1/4, 5/16, 7/16 hose end, 1/4 NPT x 1/2 hose end
Material: TIG Welded Aluminum
Finish: Polished
Bore Size-Back: 3.62"/4.02"
Working pressure: 85 PSI
Burst pressure: 245 PSI
short runner design
Aluminum Alloy

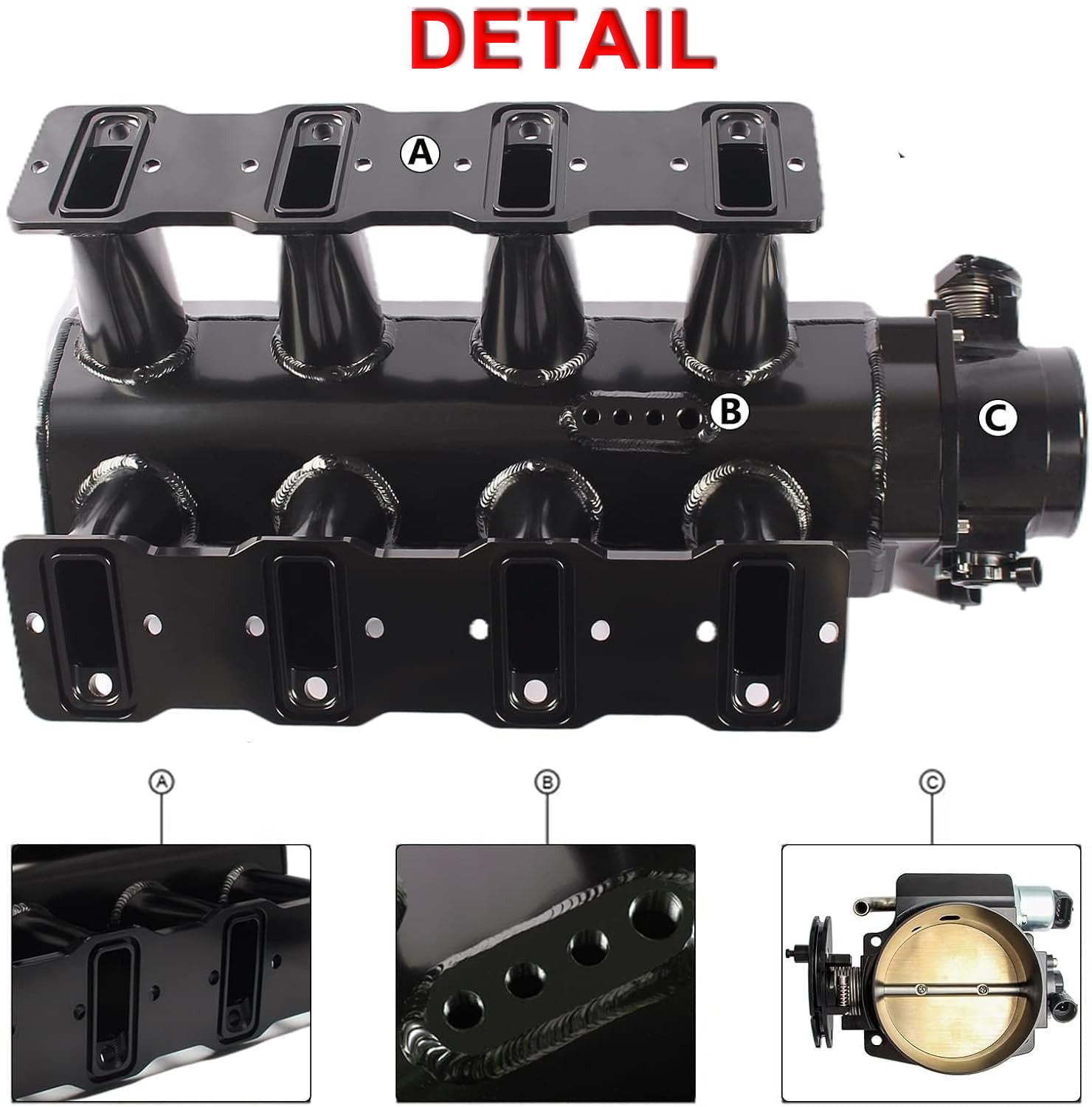

With Rear Map Sensor Port
Fit for 12592525 or equivalent LS3 Style MAP sensor (M12 x 1.25 port)
Please block it if it is not used.
3MM thickness T6061 Sheet Aluminum
TIG Welded
Stable and not bend
Improve throttle response
Engines:
Fits: For LS Based Engines with Cathedral Port Heads Shape;
For Original LS1/LS2/LS6 Engine.
For LS1 LS2 LS6 (6.0L 5.6L 5.3L 4.8L)
For Chevrolet Small Block V8 GEN. III/IV(LS-Based)
(For LR4) 4.8L / 293 CI
(For L33,L59,LM4,LM7) 5.3L / 325 CI
(For LS1,LS6) 5.7L / 346 CI
(For LQ4,LQ9,LS2) 6.0L / 364 CI
Models:
Compatible with 1997-2007 Chevy Corvette
Compatible with 2001-2004 Corvette Z06
Compatible with 2005-2006 Chevy SSR
Compatible with 2006-2009 Chevy TrailBlazer SS
Compatible with 1998-2002 Pontiac Firebird Formula, Trans AM
Compatible with 2005-2006 Pontiac GTO
Compatible with 2004-2007 Cadillac CTS V-series
Compatible with 2008-2009 Saab 9-7X Aero

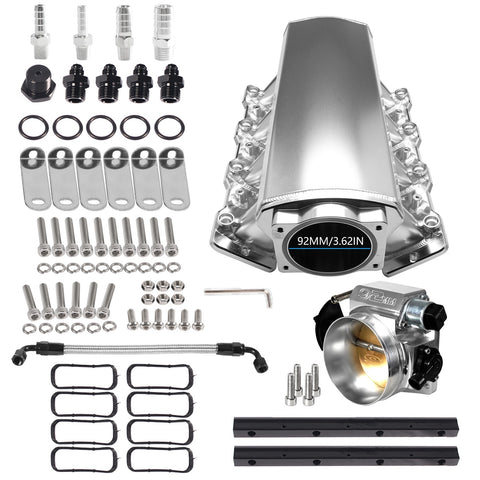

Intake manifold (with rear map sensor port)

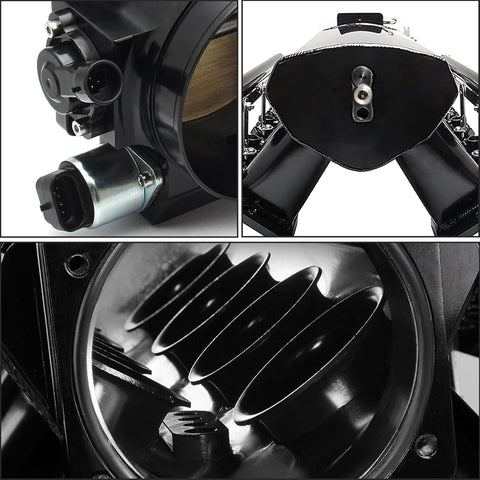

Throttle body (with TPS & IAC)
Fuel rails &bracket & bolts & gaskets
Fuel crossover line
Adapters &O-rings
Washers
